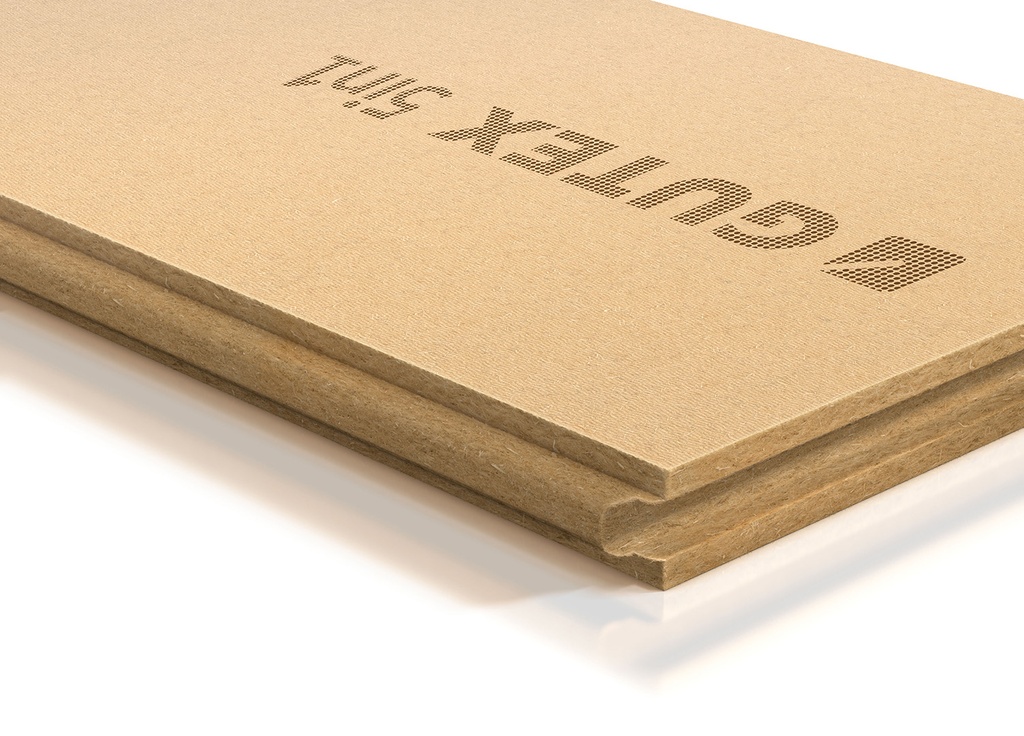

Thermowall 5in1 tongue and groove all round

GUTEX Thermowall 5in1 – the universal wood fibre insulation board

GUTEX Thermowall 5in1 is a versatile and sustainable wood fibre insulation board developed to meet the highest demands of modern timber and solid construction. With just one product, you can cover five applications and benefit from maximum flexibility in planning, storage and processing.

5 applications – 1 board

1. Plaster base panel for Thermowall-ETICS
   – on timber frame constructions and solid timber elements without rear ventilation

2. Exterior panelling
   – direkt auf Holzständern und Massivholz hinter der Vorsatzschale bei hinterlüfteten Fassaden

3. Rainproof underlay (UDP-A)
   – from 60 mm thickness

4. Internal insulation of the external wall
   – plasterable

5. Full-surface insulation layer for the installation level

Formate & Varianten

• Dicken: 40, 60, 80, 100, 120, 140, 160, 180 und 200 mm

• Formate:

  • 1.900 × 600 mm (Nut+Feder rund, alle Dicken)

  • 2.550 × 600 mm (60, 80, 100 mm)

  • 3.000 × 1.250 mm, stumpf (60 mm)

  • 3.000 × 2.500 mm und 6.000 × 2.500 mm, stumpf (60 mm)

• Einsatzfreigaben:

  • Einblasdämmung: 60–200 mm

  • WDVS: 60–160 mm
